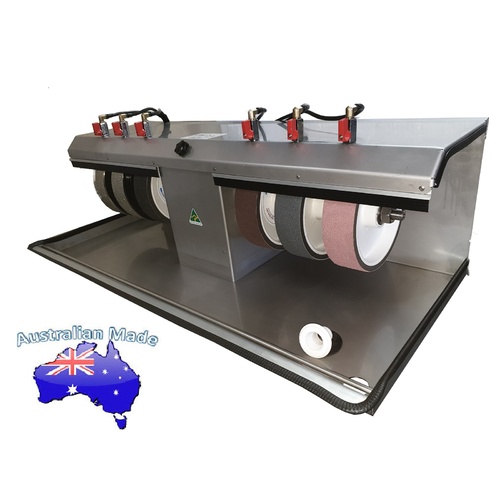

ProCabber 200mm x 6 Wheel Stainless Steel Cabbing Machine - Premium

Fully Equipped, Supplied With Genuine Nova Soft Wheels.

$4,300.00
In Stock


Calculate Shipping


PROCABBER 8" x 6 WHEEL STAINLESS STEEL CABBING MACHINE

MACHINES ARE IN STOCK. DISPATCH TIME IS CURRENTY 3-4 WORKING DAYS.

Our ProCabber cabbing machines are Australian made in Ballina NSW. They are fully stainless steel in construction including the shaft and bearings! Both the motor and the shaft pulleys have keyways to prevent the pulleys from slipping.

Pro Cabbers have a longer shaft than less expensive imported machines, enabling greater spacing between the wheels. This allows much better access to the edge of the cabbing wheels.

Shafts are 1" stainless steel and threaded at both ends. The shaft reduces to 5/8" on both ends to accept left or right hand alloy face plates with a 5/8" UNF thread. Our shafts are also tapped out with a 1/4" thread on both ends to accept a range of accessories and plastic face plates that come witha 1/4" male thread.
The shafts accept silicon carbide, diamond wheels or rubber expandable drums of any brand.

CABBING MACHINE COMES WITH:

Stainless steel body Machine, with shaft, shaft nuts and four wheel spacers.

A 1/2hp fully sealed Australian supplied motor that is C-Tick approved. A drive belt and one speed pulley system.

Water supply kit (6 taps and water manifold). The manifold screws on to a standard garden hose with the male fitting supplied.

Two (hard) Diamond plated wheels, standard set up and general purpose grits are #80 #220
along with four Diamond Pacific Nova (soft) wheels #280 #600 #1200 #3000.

We recommend three hard and three soft wheels as a better configuration for Lighting Ridge and Coober Pedy opal cutting. Our team is happy to give you advice on the best configuration to meet your particular requirements

A left hand Alloy face plate with #320 diamond disk for grinding flats. The face plate has been mounted with a magnet so any aditional grinding disc can be easily interchanged.

A right hand alloy face with magnetic backed felt for polishing. The face plate thas been mounted with a anti tarnish steel disk so aditional magentic felts can be easily interchanged.

Choice of either Cerium Oxide or 50,000 Diamond Polishing Compound. We recommed 50,000 diamond for most gemstones however believe Cerium oxide to be better with Lightning Ridge or Coober Pedy Opal.

You will need to organise your own gravity fed container and hose that will attach to the back of the manifold. The water system is NOT designed for mains pressure.

The Pro Cabber is a single speed machine, however can be converted to 3 speed with the addition of our optional 3 Step Pully System for an additional $140.00

The single speed version runs at 1775 rpm. The optional 3 speed pulleys give you the following range of speeds: 850, 1420 and 1988 rpm.

All customisation and any warranty work is carried out in our own workshop. We have many years of experience in selling and servicing cabbing machines.

Unlike our competition, the staff at Gemcuts include professional commercial cutters and can offer the best advice there is. If you are shopping purely on price then be careful - you are only going to get what you pay for!

SHIPPING: Due to the size and weight of this machine it ships in 2 cartons. The cartons weigh approximately 33kg and 16kg each and the main carton is quite bulky. It is adviable to have someone available to help you move and unbox the machine once you have received it. It can only be shipped with Star Track Express as it is too large for our other couriers and for Australia Post.



(GPC8-GP)

SKU GPC8-GP
Brand Gemmasta
Shipping Weight 60.0000kg
Shipping Width 0.800m
Shipping Height 0.590m
Shipping Length 1.000m
Shipping Cubic 0.472000000m3
Unit Of Measure ea
Assembled Length 0.550m
Assembled Height 0.300m
Assembled Width 0.750m

Gemcuts Pro Cabber

By: on 27 January 2024
As a member of the Laurieton Menshed, Our new Lapidary Group purchased the 200mm Machine with Variable Speed control to teach others interested in the Art of Gem Cutting, As we have Three experienced Gem Cutters that have been cutting for some number of years. The Machine has been preforming beautifully and is a pleasure to operate and highly recommend it to others wanting a quality piece of machinery
