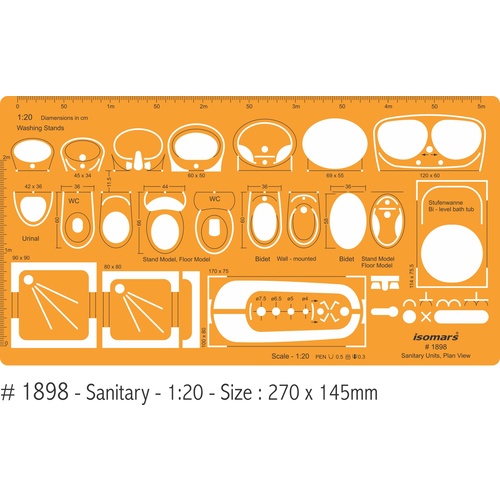

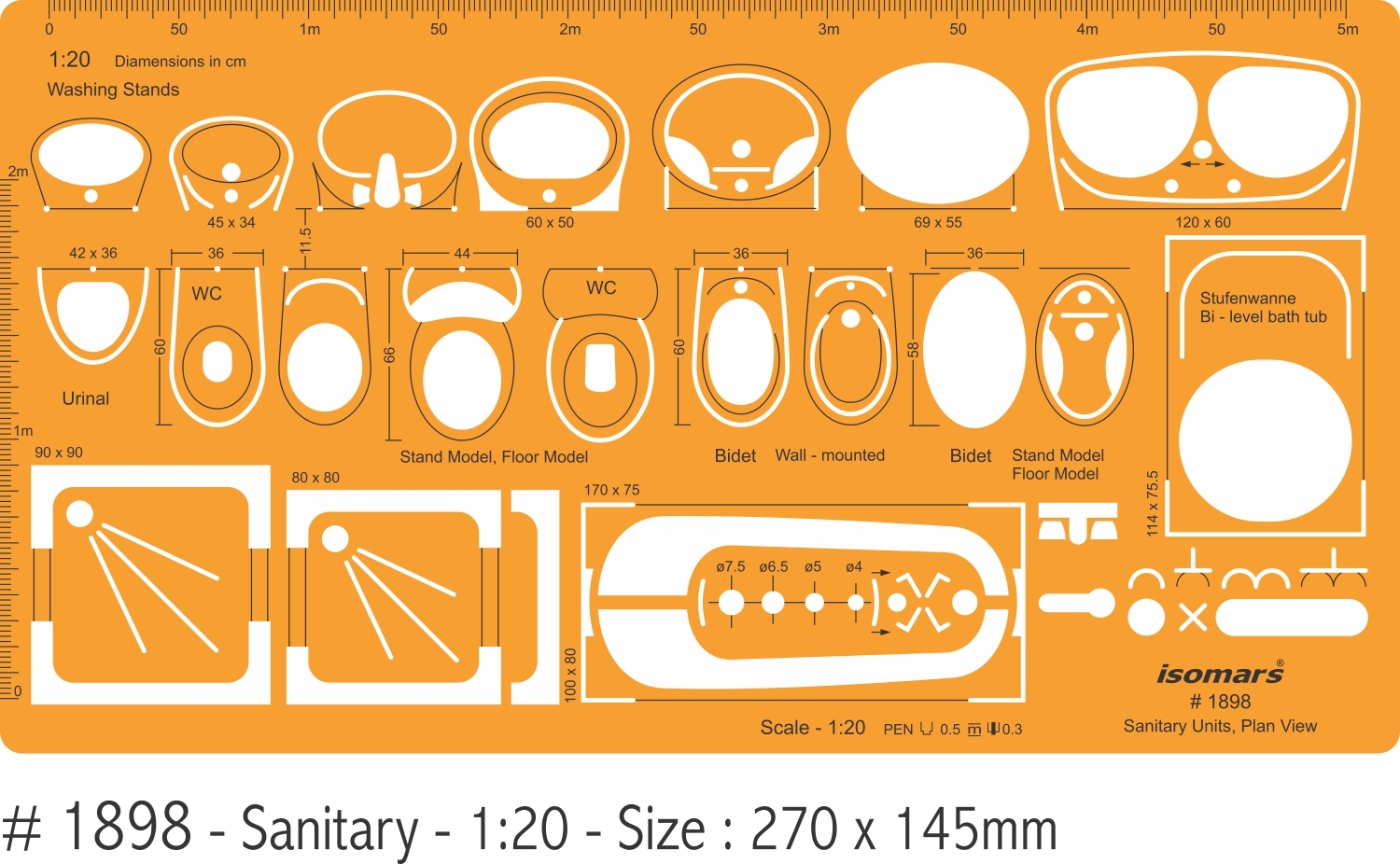

Architects Drafting Template Sanitary Units - Plan View 1:20

In Stock

Calculate Shipping


  • Dimensions: 270x145mm, Thickness: 1.2 mm
  • Made from transparent, orange plastic. The rate of transparency allows to see the drawing medium below template for easy positioning.
  • This architect bathroom planning stencil contains symbols of showers, bath tubs, floor and wall mounted bidets, urinals, washing stands, sinks, taps and elements of electrical installation.
  • Useful when sketching, drafting, marking-up design layouts for bathroom, WC, toilets.


Brand Isomars
Shipping Weight 0.1000kg
Shipping Width 0.200m
Shipping Height 0.010m
Shipping Length 0.150m
Shipping Cubic 0.000300000m3
