Architects Drafting Kitchen & Living Room Furniture - Plan View 1:50

In Stock

Calculate Shipping

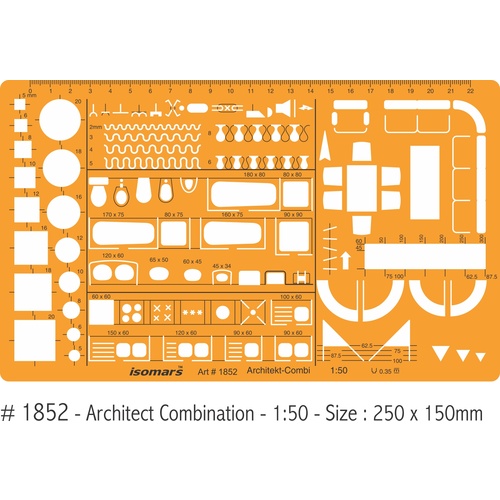

This architect general planning stencil contains symbols of dining suites, sofas, sinks, cook tops, bathroom fixtures, doorway openings and other elements of domestic design.

Useful when sketching, drafting, marking-up design layouts for new or re-designed homes. Made from transparent, orange plastic. The rate of transparency allows you to see the drawing medium below template for easy positioning.

High quality, brand new item in original packaging.

Isomars Templates contain precision-milled shapes and provide complete accuracy and symmetry. The templates eliminate the time consuming job of drawing outlines with rulers and dividers.

Isomars is one of the leading manufacturers and suppliers of all kinds of technical drawing and fashion designing instruments since 1959.


Brand Isomars
Shipping Weight 0.0800kg
Shipping Width 0.001m
Shipping Height 0.300m
Shipping Length 0.150m
Shipping Cubic 0.000045000m3
