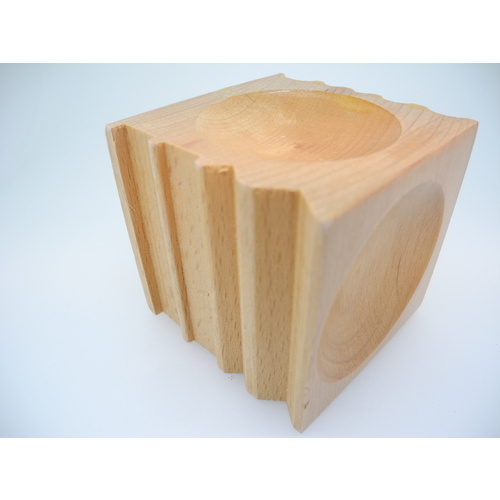

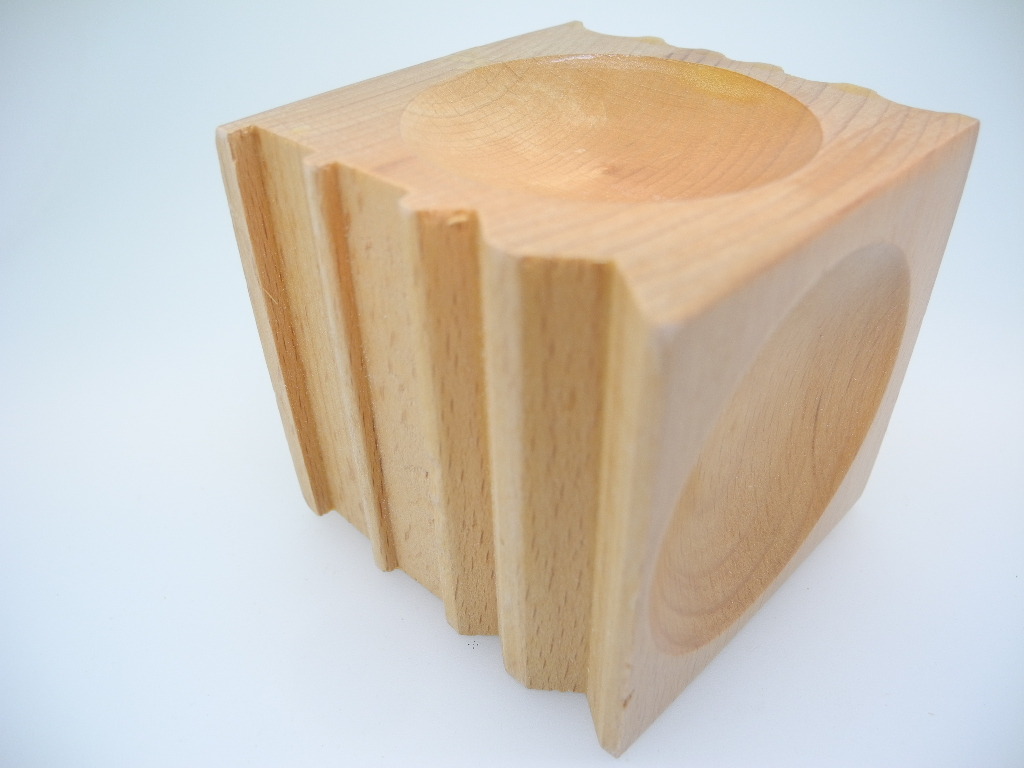

WOODEN DOMING FORMING BLOCK

This forming block is made from non-marring hardwood.

It is similar to a metal swage block as it also has straight, curved and V channels as well as 4 different sized hemispheres.

Wooden doming blocks are more shallow than their metal counterparts. Because wood is soft, it will not mar or damage the design you've added to the disc as you dome it.

When doming, work the metal into shape slowly. Starting with a larger or more shallow die and working your way down to the size you wish to end up with.

Don't try to complete the dome in one step unless you need a very shallow curvature.

The hardwood forming block measures 65mm x 65mm x 65mm





The 4 hemisphere shapes come in the following sizes:

54mm diameter x 10mm Deep

51mm diameter x 7.5mm Deep

48mm diameter x 7mm Deep

41mm Diameter x 5.5mm Deep





The Grooves on the edges are the following sizes:

Straight Channel 12.5mm Wide x 2.5mm Deep

Straight Channel 13.7mm Wide x 3mm Deep

V Channel 13mm Wide x 4mm Deep

V Channel 8mm Side x 3.2mm Deep

U Channel 5mm Wide x 1.8mm Deep

U Channel 6mm Wide x 2mm Deep

U Channel 8mm Wide x 2.5mm Deep

U Channel 9mm Wide x 2.5mm Deep

U Channel 12.5mm Wide x 4.5mm Deep



Great Value For Money!

Made in India.

(WDFB)

SKU WDFB
Brand SLS
Shipping Weight 0.2500kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
