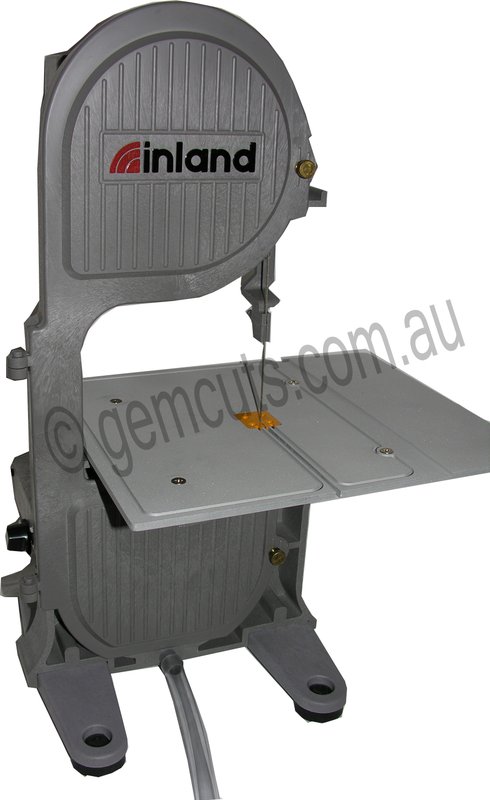

Inland Craft DB-100 Bandsaw







DB-100™ DIAMOND BAND SAW

The easiest to use, most versatile Diamond Band Saw ever made. The Inland DB-100 Diamond Band Saw is the perfect saw for intarsia, free form, and even cabbing preforms. Saws hundreds of minerals, from Acanthite to Zircon. Increase your yields on valuable rough with accurate preforms cut right out of the middle of a piece! Improve your faceting results by cutting along the veils for cleaner finished gems.

Key Features

  • Comes with one diamond blade for sawing agates, opals, glass, stone, and most other hard materials.
  • The optional WoodCut™ and MetalCut™ blades saw wood, plastics, fibreglass, leather, non-ferrous metals, printed circuit boards and more.
  • Replaceable BladeSert™ blade guides make the most intricate cuts simple. The upper blade/drip guide is adjustable for varying material thickness.
  • The coolant system provides a continuous, regulated flow of clean coolant to the diamond blade when wet sawing. Uses water for coolant to avoid messy oil clean-up.
  • The spring-loaded tension system, moulded into the frame, insures proper wheel alignment, simple blade set up, and perfect tracking hour after hour, and enhances blade life.
  • The work surface is made of machined aluminium 9" x 10". Drain channels funnel coolant into the internal drain system for a clean, clear view while sawing.
  • The frame, cover, and water reservoir are moulded entirely from structural grade thermoplastic.
  • All frame and interior support walls are extra thick for maximum strength and durability.
  • The rigid housing absorbs and deadens sawing and motor sounds for quiet operation. The plastic construction makes it extremely light weight and easy to handle, so you can take it with you on the road!
  • Construction: Injection moulded, structural grade thermoplastic
  • Motor: Permanent magnet, speed controlled, up to 2800 rpm
  • Torque: 48 oz.-in.
  • Work surface: 9" x 10"
  • Size:18" high x 10" deep x 12" wide.
  • Shipping Weight: 11lbs.
  • Throat Depth: 4.75" (12 cm)
  • Cutting Depth: Maximum material thickness: 3" (7.6cm)
  • Minimum Radius: 3/16" (.5 cm)
  • Maximum Radius: 4.75" (12 cm)
  • Cutting Speed: Dependent on material type and thickness. Up to 12"/minute (30.5 cm/minute)
  • Two Year Full Confidence Warranty

Available Parts and Accessories



$413.64 ($442.65 †)
