Cratex Rubberised Abrasives > Cones

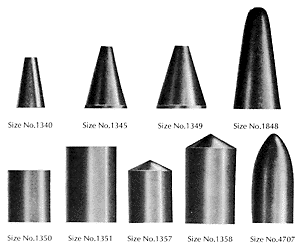

Cratex Cones
rubcones.gif (13560 bytes)Cratex Cones are the best answer to many difficult deburring, smoothing and polishing problems. They are easily shaped to contour while being used or by using a Cratex conventional dressing tool. They are ideal for cleaning and polishing grooves, ball corners, flares, angles and other hard to reach surfaces as well as for use on moulds, dies, castings, combustion chambers and ports, stainless steel tanks, shafts, turbine blades, and many others.
Dimensions in inches
Shape Length Diameter Arbor Hole Part No.

Tapered 1 5/8 to 1/4 1/4 1340
Tapered 1-1/4 7/8 to 1/4 1/4 1345
Tapered 1-1/4 1 to 1/4 1/4 1349
Tapered 2 1 to 1/2 1/4 1848
Cylinder 1 7/8 1/4 1350
Cylinder 1-1/2 1 1/4 1351
Pointed 1-1/4 7/8 1/4 1357
Pointed 1-3/4 1 1/4 1358
Bullet 1-3/4 7/8 1/4 4707

Cratex Cone Mandrel - Part No. 1341
conemand.gif (2180 bytes)Cratex Rubberized Abrasives Cones are designed to fit Cratex Cone Mandrel No. 1341, 1/4" Shank. Maximum Safe Speed 20,000 Revolutions Per Minute with 1/2" overhang or less (exposed mandrel length). For each additional 1/4" of overhang the Maximum Safe Speed is decreased by at least 20%.

Maximum Safe Speed is 20,000 Revolutions Per Minute. Best results are usually obtained at 30% to 80% of Maximum Safe Speed. Use a light work pressure.






QTY:



QTY:



QTY:



QTY:



QTY:



QTY:



QTY:



QTY:



QTY:



QTY:
